Multiple Sailboat Trailers
Multi-Carrier Trailers for Sailboats

Two Sailboat Trailer
Three Sailboat Trailer
Four Sailboat Trailer

Trailex Ultra-Light Aluminum Trailers come with  a One Year Limited Warranty.  Almost 50% lighter than steel trailers and they Never Rust

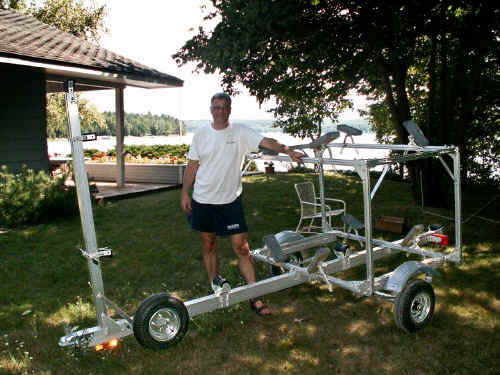

Trailex Model SUT-500-2BC Trailer

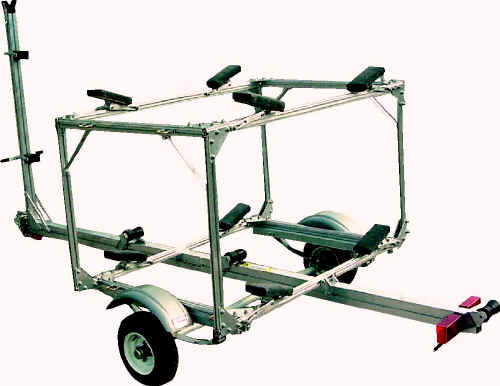

SUT-500-2B Dual Sail Boat trailer
SUT-500-2BC trailer

SHIPS VIA UPS

Model SUT-500-2BC  will carry 2 boats such as Laser, Sunfish, Force 5 Sailboats or similar boats.  Maximum beam of lower boat is 5'-2".  Upper boat can be wider.  Pads are adjustable inward or outward and will swivel flat for carrying boats such as Laser Sailboats upside down.  Has a 60" Mast Stand.  500 lb Capacity.  Trailer is 12' Long and  7' wide.  Can carry 2 small sailboats up to 14'-6" long with a combined weight of 500 lbs



SUT-500-2BC
Trailex SUT-500-2BC Has A Low Profile For Easy Loading Of Top Level



SUT-500-2BC
Specifications

Standard Equipment

Two (2) Boat Trailer For Sunfish - Laser or Similar
Capacity:  500 lbs Submersible Taillights
Weight:  190 lbs Safety Chain
Length:   12'-0" * 2 Sets Boat Cradles
Width:  84" High Impact Plastic Fenders
Height:  55" High Speed Demountable-
Inner Height: 34" Between Decks ** -Galvanized Wheels & Tires
Inner Width:  62" Inside Width Adjustable Undercarriage
Fore to Aft Spacing : 40" between Crossbars Epoxy Coated Springs
Tires:      16" High
Coupler:  1-7/8"
Electrical: Flat 4 prong

  * Optional 15'5" Length
  **Optional 44" Height





SUT-500-2BC Trailer with Sailboat and Canoes
Sunfish Sailboat with Two Canoes

Different type of boats may be combined with each other  on the SUT-500-2BC Trailer.  For Creative ideas see this model with multipurpose applications.  CLICK HERE



For Additional Photos
CLICK HERE





All Aluminum, All Bolted Construction, All Adjustable

Multi Carrier Trailers  have epoxy coated leaf springs, giving them a carrying capacity of up to the listed load ratings.    Since these Trailers are made of aluminum, they are maintenance-free in addition to being strong and lightweight.  These trailers require common carrier or motor freight shipment, and are easily assembled using only simple tools.





Trailex Model UT-400-3LS



Trailex Model UT-400-4LS

Multiple Sunfish and Laser Sailboat Trailer, carries 3 to 4 sailboats     Multiple Sunfish and Laser Sailboat Trailer, carries 3 to 4 sailboats

Trailex Model UT-400-3LS and UT-400-4LS will carry  3 or 4  respectively, Laser, Sunfish or similar sailboats.   Maximum beam of lower boat is 4'-8" .Upper boat can be wider.  Pads are adjustable inward or outward and will swivel flat for carrying boats such as Laser Sailboats upside down.  600 lb Capacity.  Trailers are 15'-10" Long  and 70" Wide. Vinyl inserts and end caps protect  side mounted boats.

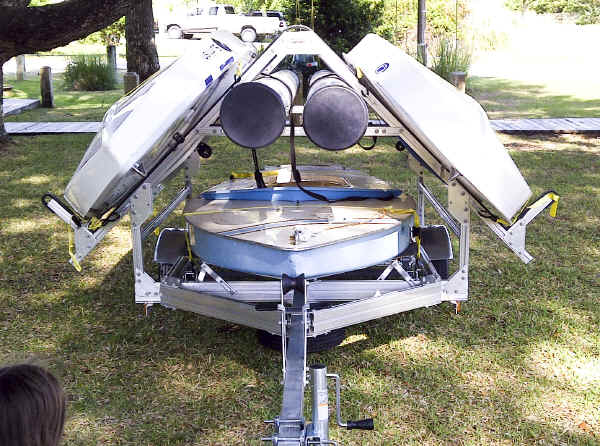

Trailex Model UT-400-3LS
Trailex Three Laser Sunfish Trailer UT-400-3LS

Trailex UT-400-3LS Trailer Carries Three (3) Laser or Sunfish Style Boats





Multiple Sunfish and Laser Sailboat Trailer, carries 3 to 4 sailboats

UT-400-3LS Trailer will transport  Sailboats up to 4'-8" wide.  Capacity is 600 lbs Total.
Shown with Options:  Upper Cross Bars for Storage and Bow Stop





Multiple Sunfish and Laser Sailboat Trailer, carries 3 to 4 sailboats

Trailex UT-400-3LS Trailer can carry Three Sunfish or Laser Style Sailboats
Shown with Optional Bow stop







UT-400-3LS
Specifications

Standard Equipment

Three (3) Boat Trailer For Sunfish - Laser or Similar
Capacity:  600 lbs Submersible Taillights
Weight:  175 lbs Safety Chain
Length:   15'-10" High Impact Plastic Fenders
Width:  70" High Speed Demountable-
Height:  60" -Galvanized Wheels & Tires
Fore Aft Spacing 72" Between Bunks Adjustable Undercarriage
Side Load Width:  60" Angled Bunk Width Epoxy Coated Springs
Inner Width: 60" Inside Width 1 Set  Padded Bunks Lower
Tires:      16" High Dual Padded  Side Bunks
Coupler:  2"
Electrical: Flat 4 prong





Multiple Sunfish and Laser Sailboat Trailer, carries 3 to 4 sailboats       Multiple Sunfish and Laser Sailboat Trailer, carries 3 to 4 sailboats
Trailer Carries Three Sunfish or Lasers    Carry all your Family's Boats Together
Shown with Optional Bow stop

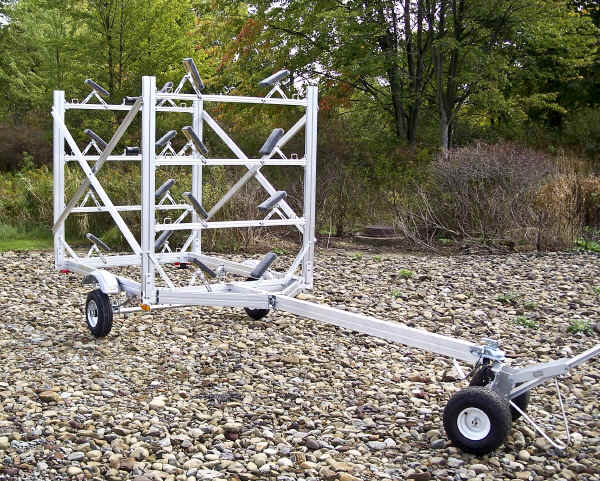

Trailex Model UT-400-4LS
UT-400-4LS Four Sailboat Carrier
UT-400-4LS Trailer
(shown with SUT-HDKD Trailer Mover Dolly, not included)






UT-400-4LS
Specifications

Standard Equipment

Four (4) Boat Trailer For Sunfish - Laser or Similar
Capacity:  600 lbs Submersible Taillights
Weight:  240 lbs Safety Chain
Length:   15'-1" High Impact Plastic Fenders
Width:  79" High Speed Demountable-
Height:  86" -Galvanized Wheels & Tires
Fore Aft Spacing 75" Between Bunks Adjustable Undercarriage
Height Spacing:  18"  Cross Bar  Spacing Epoxy Coated Springs
Inner Width: 66" Inside Width 4 Sets Padded Bunks
Tires:      16" High
Coupler:  2"
Electrical: Flat 4 prong





Wheel Size Options
Two wheel and Tire Sizes are available





Standard  is 8.00 X 4.80
  Actual Height is 16"

Large   is 12.00 X 4.80
 Actual Height is 20"





PRICES

SUT-500-2BC

See Price

<CLICK HERE>

UT-400-3LS

3142.00

+ shipping & handling

UT-400-4LSWT

3389.00

+ shipping & handling





              Optional Extra Equipment

SUT-12 12"  Wheel Upgrade (Large 12.00 X 4.80)

179.00

SPGAL Spare Tire  (Standard 8.00 X 4.80)   69.00
SPGAL-12 Spare Tire  (Large 12.00 X 4.80)

  99.00

JACK Adjustable Front Parking Jack 149.00
WNC Winch Package 159.00
B-Stop Bow X-Stop for Lower Boat 3LS,4LS   59.00
CB-3LS Upper  Cross Bar Set for 400-3LS 149.00







  Bearing Protection System
  Included on Every Trailer

Sure Lube low pressure bearing lubrication system.  Protects bearings and prevents any seal damage.
Easy to use. A Zerk Fitting is located under the axle's end cap. Removing the end cap allows you to use a
small grease gun to lubricate the bearings.
The new grease pushes the old grease out.





Application Information

Model SUT-500-2BC will carry Two Laser, Sunfish, Force 5 or similar sailboats up to 5'-2" wide

 Model UT-400-3LS will carry Three Laser, Sunfish, Force 5 or similar sailboats up to 4'-8" wide.

Model UT-400-4LS will carry Four Laser, Sunfish, Force 5 or similar sailboats up to 4'-8" wide.

Assembly Note:  Due to their many components, these trailers require more assembly time and skill levels than our other trailers


Trailex T-bolt

Trailex T-Bolt with nut

  • Patented T-Bolt Construction

  • Fully Adjustable

  • Heads of bolts slide to any position.

  • Requires only one wrench to tighten

  • Lock nuts on all bolts

  • Strong & lightweight

Trailex Extrusion & T-Bolt



Click Here for Frequently Asked Questions





See Action Videos
Trailex  Trailer Owners  love to post Videos.  See the Latest Action Videos
