Note 1 - 2" Ball size listed comes
standard. Smaller ball will work with larger coupler sizes.
Optional 1-7/8" ball is available.
** Typical capacity - However, it does not mean
that one person can move a large trailer by themselves. It may take
several people to move a very large trailer. Small trailers are easy maneuvered
by one person. Use is based on smooth level surfaces. Graveled,
rough or inclined surfaces may limit the use of a trailer mover dolly.
Note 2 Tongue weight is
typically 10% to 15% of the total trailer weight. Tongue weight can be
adjusted by moving the axle position on adjustable trailers. If axle
position does not adjust, then positioning the load farther back will also
decrease tongue weight. Do not exceed 300 lbs tongue weight.

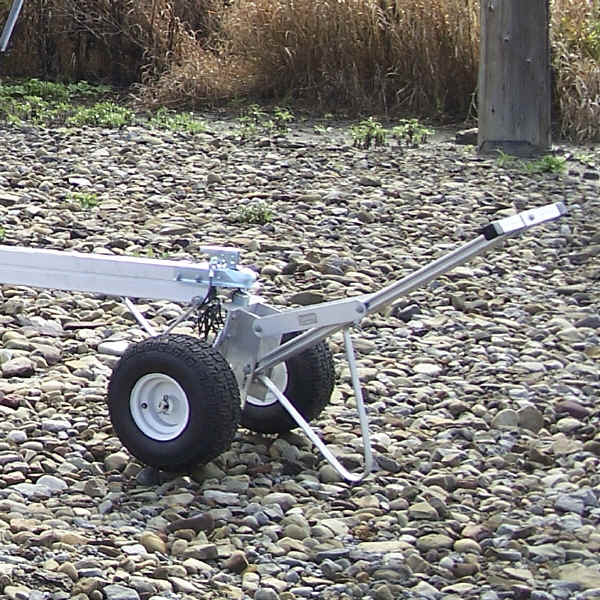

Usage Note Tongue Jack on your trailer should be adjusted so that
the parking jack wheel or bottom portion clears the ground by just enough distance so
as to not touch the ground while using the dolly. This will prevent the
trailer tongue from dropping down if you happen to release the dolly handle
inadvertently.
|
