Trailer Options
MAST
CARRIERS
 |
|
 |
| Aft Mount Mast Stand |
|
Deck Mount Mast Carrier DMMC4 |
10" Aft Stand |
|
Vee opening is 6" at top, 3" at bottom
2.5" depth, - vinyl covered |
|
|
|

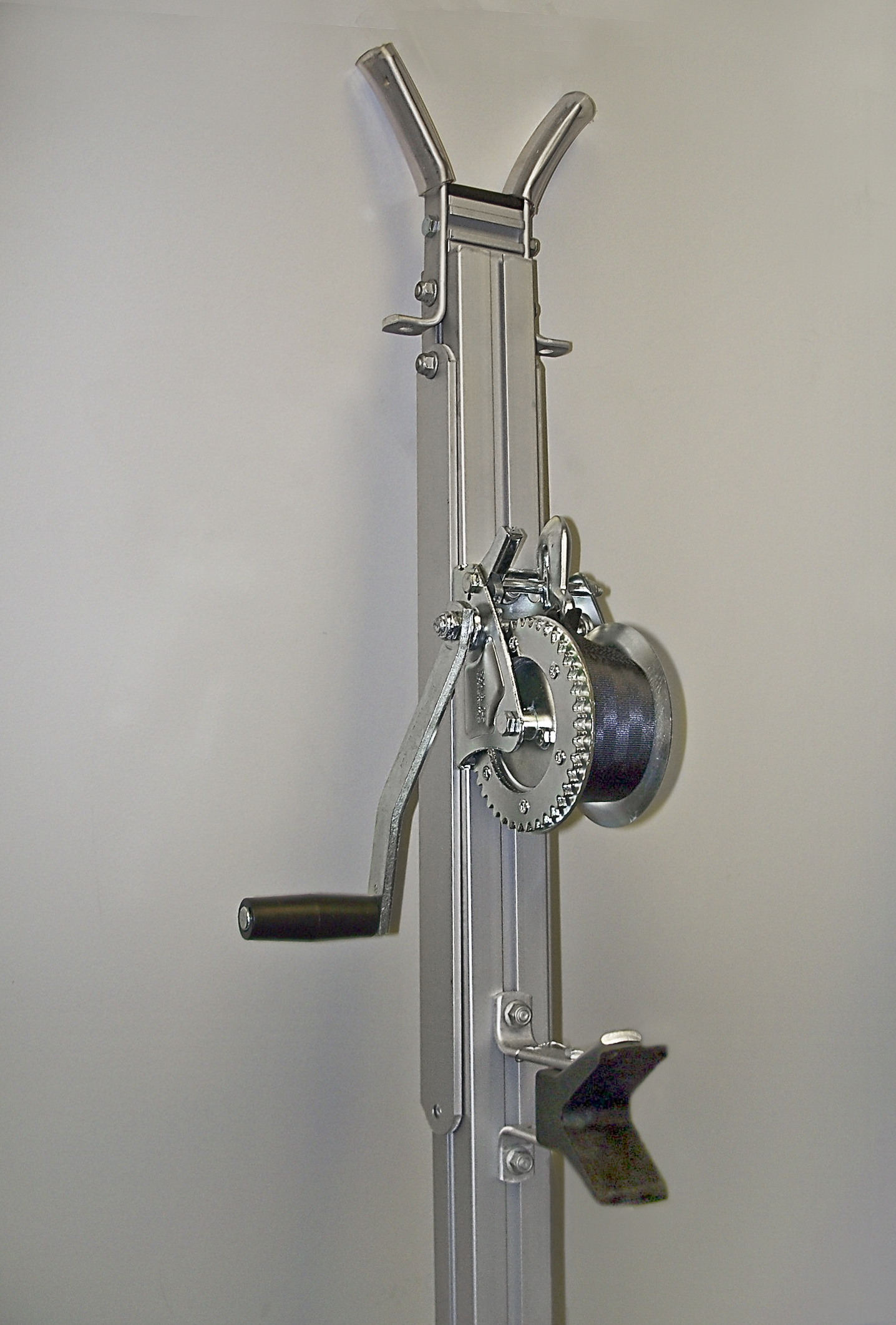

48" Front Mast Stand & Optional Winch |
|
FMS Front mast stands are available in 48" and
60" height. These mount to the trailer's front tongue and can be
used with different combinations of rear mast carriers
How High a Front Mast Stand Do You Need?
Tip--measure the the height from the top of your hitch ball to the top
of your vehicle's roof to determine how high a clearance that you need.
The rear mast carrier's height will determine the angle of your mast as
it goes over your roof. |
 |
|
 |
| Front View Showing Optional Mast Stand |
|
Rear View Showing Optional Mast Stand |
Mast Carriers are available in a number of optional arrangements.
Aft Mast Carriers fit into the 3/8" pintle on the rear
of sailboat transoms.
Available in sizes: 10", 16", 33".
Deck Mount Mast Stands fit on the flat deck surfaces
of sailboats, the four suction cup feet prevent marring or damage to the
boat. You tie the spars down to the boat or trailer and the pressure from
the tied down spars hold the Deck Mount Mast Carrier in place - not the suction
cup feet, which are only to prevent shifting and protect the deck.
Examples:
SMSK Set for Sunfish/ Laser Sailboats or similar
sailboats uses 10" Aft Mast
Stand with front Deck Mount Mast Carrier. Will work with any similar style
sailboat with 3/8" pintles.
Use Two DMMC4 Mast
Carriers for carrying disassembled mast with spars when using a boat cover
Use Two DMMC4 Mast Carriers for Sailboats with flat fore
and aft decks
WINCH
OPTION
Typical Winch Installation on a SUT-200-S or SUT-250-S Trailer
|
|
|
|
|
Winch is Available as an Option
Shown on SUT-450-I Trailer |
|
Winch Strap is 20' X 2" with Hook
|
Trailex Winch
Requires Winch Post ( part of Winch Package when Ordered)
IMPORTANT NOTE: YOUR BOAT NEEDS A 1" INSIDE DIAMETER BOW-EYE OR RING TO TO FIT THE HOOK.
Specifications:
1,500 lb Capacity
Single Speed
Gear Ratio 4.1:1
Strap 20ft. x 2in. with hook
Hook is Forged Approx 7/8" X 1/2" Nose ( Need 1" inside Diameter Bow Eye or Ring on Boat)
Ratchet Type Two-way
Dimensions - 5-1/2" L x 3-3/4" W x 6" H |
JACK
OPTION

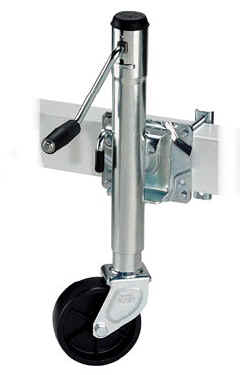

Optional Front Parking Jack
 |
|
Optional Front Parking Jack has a Wheel as the bottom support. Jack will adjust
to any location along the trailer tongue length. It raises the wheel off the
ground to allow clearance when the trailer is attached to a vehicle hitch.
( note: this is a rack style jack, that raises vertically only
- it does not swing up)
Do You Need
a Jack?
Many Users do not need a Jack, but may prefer one for
convenience. The Trailex Trailer has a front "V" support
that will keep the Hitch Coupler off the ground if you choose not
to mount a Jack on the trailer |
WEB
STRAP CLIP OPTION
FWSC Option |
|
Set of Four Clips
|
|
Optional Tie Down points for Web Straps or Bungee Cords - Use
to add extra tie down points to secure boat.
Easily adjusts to any position by sliding.
|
|
FWSC Option includes Four Sliding Square Eyebolts. These can
be installed on any side of a member on the unit that has a
slot and then locked in place by tightening the nuts. |
|
TWO KAYAK CONVERSION
OPTION
SUT-200-S / SUT- 350-S TRAILER ONLY |

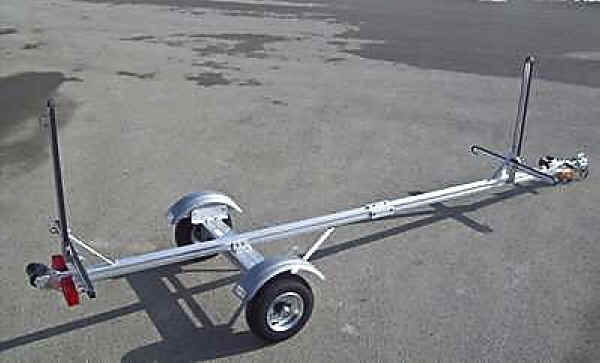

The Trailex SUT-200-S
Trailer can be converted to a Dual Kayak Trailer with the SUT-200-MPK
Kit
The SUT-200-MPK Dual kayak Conversion Kit replaces the supplied Cradles
and installs the
Tee Bars on the Trailex
SUT-200-S Trailer or the
SUT-350-S Trailer

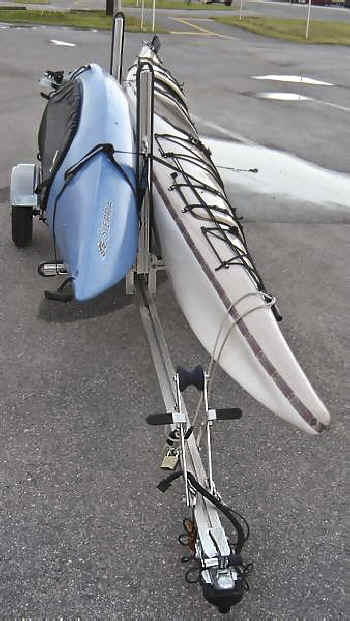

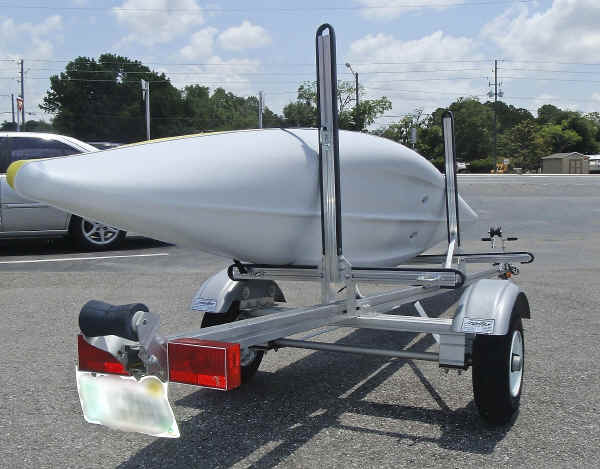

Trailex SUT-200-S Trailer
With Two Kayaks after
installing the Optional SUT-200-MPK Tee Bar Set
CUSTOM
FRONT CRADLE OPTION
 |
|
 |
|
Optional FCA-1 Custom Front Cradle Assembly Provides
Additional Bow Support Adjustment
NOTE: Special Use Only-Not Required for Most Boats
|
|
Cradles Adjust To Fit Many Special Boats Such As the
Force 5, MXRay and Others
|
|
