Laser Sailboat Trailer
For Laser and Laser 2 Sailboats

Trailex Ultra-Light Aluminum Trailers come with  a One Year Limited Warranty.  Almost 50% lighter than steel trailers and they Never Rust



FREE SHIPPING ON TRAILEX SUT SERIES TRAILERS*
*within the 48 USA



Model SUT-250L & SUT-250LII Series Trailers



Trailex Model Ut-250L Trailer For Laser Sailboats

Model SUT-250L Supports Laser Sailboat at Three Points


Using a standard trailer on a Laser or Byte Sailboat can cause the hull to delaminate or form a "rocker" or chine in the hull surface, severely diminishing the boat's performance.   The Trailex model SUT-250L supports the Laser at three points on the gunwale, eliminating any hull stress points.  Swivel Bow Support is included as a standard feature for single handed loading.




SUT-250-L    Trailer  is 1,949.00 + FREE Shipping (48 USA)

SUT-250-LII Trailer  is 1,949.00 + FREE Shipping (48 USA)

Scroll Down the Page  for Details , Available Options Pricing  and Action Videos



View All Trailer Prices
  <CLICK HERE>









SPECIAL OFFER
(offer only valid when ordered with trailer)
Sorry, Offer Does Not Apply to Prior Sales + Limited Time Offer

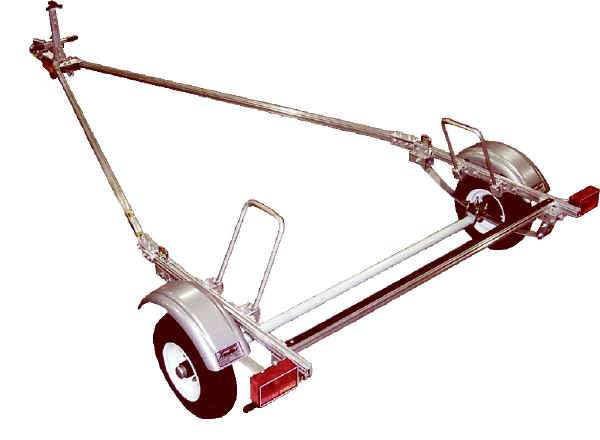

Trailex Model SUT-250L Trailer for Laser Sailboats

All Aluminum, All Bolted Construction, All Adjustable


This trailer can be shipped via UPS, and is easily assembled using only simple tools.  Since the SUT-250L Trailer is made of aluminum, it is maintenance-free in addition to being strong and lightweight. Optional mast carrier sets are available.

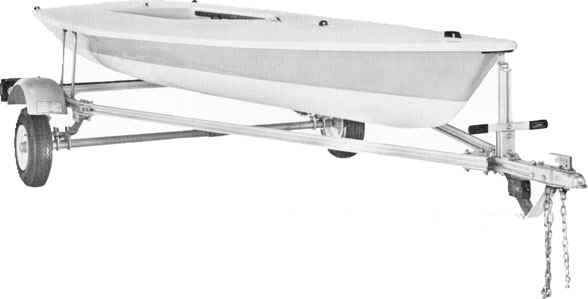

Trailex SUT-250L Trailer with Laser Sailboat

Trailex SUT-250L Trailer with Laser Sailboat


View All Trailer Prices
  <CLICK HERE>









Specifications

        Standard Equipment

Capacity:
Weight:
Length:
Width:
Tires:
Coupler:
Electrical:

250 lbs
120 lbs
12 feet
75"
16" High
1-7/8"
Flat 4 prong

  • Submersible Taillights

  • Safety Chain

  • Three Point Supports with Rubber Protection

  • Bow Clamp

  • Web Strap Clips (2)

  • Lift Handle with Vinyl Caps

  • High Impact Plastic Fenders

  • High Speed Demountable Galvanized Wheels & Tires

  • Hot Dip Galvanized Axle

  • Epoxy Coated Springs

  • Vinyl Extrusion on rear member protects hull when loading

  • Swivel Bow Support







Optional Extra Equipment


SUT-12 12"  Wheel Upgrade (Large 12.00 X 4.80)

198.00

SPGAL Spare Tire  (Standard 8.00 X 4.80)   69.00
SPGAL-12 Spare Tire  (Large 12.00 X 4.80)

  99.00

STC Spare Tire Carrier   59.00







Optional Extra Equipment


SMSK Mast Carrier Set  AM-10+DMMC4

119.00

DMMC4 Deck Mount Mast Carrier (ea)

  59.00

Swivel   Bow Support is included as a standard feature









  Bearing Protection System
  Included on Every Trailer

Sure Lube low pressure bearing lubrication system.  Protects bearings and prevents any seal damage.
Easy to use. A Zerk Fitting is located under the axle's end cap. Removing the end cap allows you to use a
small grease gun to lubricate the bearings.
The new grease pushes the old grease out.







SMSK  Mast Carrier Set includes Front Deck Mount Yoke with non-marring feet and a Rear Mast  Carrier Yoke with 3/8" pintles to fit into the Rudder mounting holes





Trailex Laser Trailer with Spare Tire Mounted
Trailex SUT-250L Trailer for Laser Sailboats.   showing Spare Tire Mounting Loacation



Application Information

Two Models are available for Laser  and Laser 2 Sailboats
One Model for Byte Sailboats

Multi-Carrier Trailers for Lasers are also available - Click Here

 To transport mast and spars broken down use the SMSK  Mast Carrier Set or   2 DMMC4 Mast Carriers.  Also use 2 DMMC4's for transporting mast and spars on top of a boat cover.

SMSO Swivel Bow Feature   (included as standard) converts the Bow Clamp into a swivel bow.  This allows one person to load or offload a Laser Sailboat on the trailer single-handed.  The Laser bow is locked down on the bow stop while the rear of the Laser can be lifted and swung to or from  the side onto or off the trailer.



Click Here for Frequently Asked Questions

Trailex Trailer Packaged for UPS Shipment

Typical Trailex Trailer Packaged for FedEx Shipment



Trailex T-bolt

Trailex T-Bolt with nut

  • Patented T-Bolt Construction

  • Fully Adjustable

  • Heads of bolts slide to any position.

  • Requires only one wrench to tighten

  • Lock nuts on all bolts

  • Strong & lightweight

Trailex Extrusion & T-Bolt





See Action Videos
Trailex  Trailer Owners  love to post Videos.  See the Latest Action Videos

CLICK BELOW





Trailex SUT-250M-2 Trailer Video







Trailex SUT-250M-2 Trailer at Paddle Sports Show
















SUT-250-L
Assembly Instructions
Escape Sailboat Trailer Zuma Sailboat Trailer
More
Trailers

Trailex Trailer Brochure
