Trailex Box Style Storage Racks
Stationary and Roll a Round Storage Racks
for
Sailboats, Row Boats, Canoes & Kayaks
Models for Optimist, Sabot, Open BIC Sailboats
|
|
Trailex Ultra-Light Aluminum Racks
and Trailer Kits come with a One Year Limited Warranty. Almost 50%
lighter than steel racks and they Never Rust |
|
FREE SHIPPING
ON TRAILEX STORAGE RACKS*
*within the 48 USA |
Racks can be
configured from Two to Two hundred or more
All Aluminum, All Bolted Construction, All
Adjustable
|
FREE SHIPPING
ON TRAILEX STORAGE RACKS*
*within the 48 USA |
|
Sailboat Storage Racks
|
|
Canoe & Kayak Rack
|
OUT
of Stock
CLICK
Here for Alternate Racks
| Box Rack for 3 Boats up
to 72" Wide is 1559.00 + FREE
Shipping (48 USA) |
| Box Rack for 4 Boats up
to 72" Wide is 1820..00 + FREE
Shipping (48 USA |
|
Box Rack for
3 Optimist Sailboats is 1559.00 + FREE
Shipping (48 USA) |
|
Scroll Down the Page for Details
, Option's Pricing |
These Style Racks are fully
Adjustable to Customize Bay Spacing
Easy to Assemble -- they are shipped via Fedex in a dismantled
state. |
 |

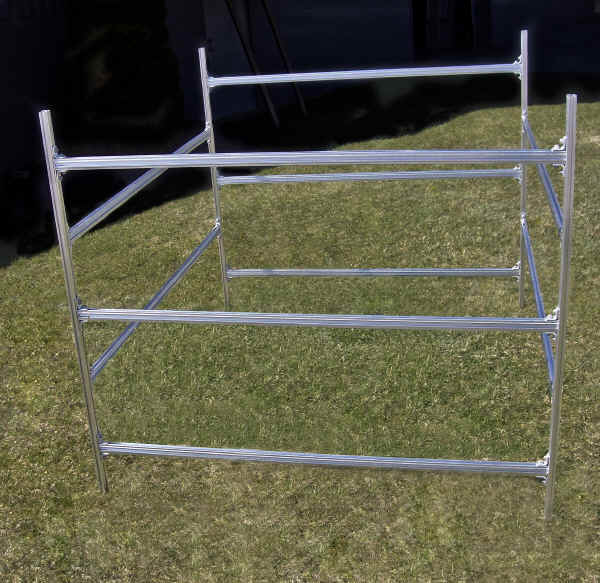

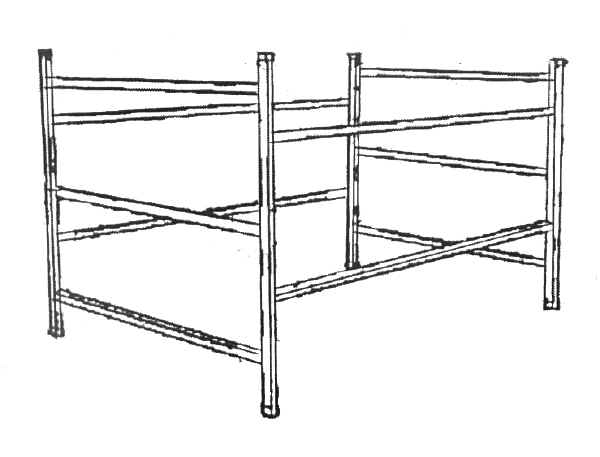

| SUT-3BR Three (3) Boat Rack --Trailex Racks can be adjusted to fit any boat up to 72"
Wide. Available in 3 boat and 4 Boat models --They can be adjusted
for use as 2 boat models. These racks will adjust to handle either
2 or 3-High Pedal and Paddle Boats. |
|
SUT-3BR DIMENSIONS |
Vertical Spacing is 24"
(adjustable) |
| Height = 66" ,
74" with Casters |
Width = 74.5"
Inside = 72" |
Depth = 75.5" |
|
Weight Capacity is 200 lbs per bay
600 lbs Total |
|
CLICK
HERE to view dimensional drawings |
 |
|
 |
| SUT-4BR Four (4) Boat Rack - Trailex Racks can be adjusted to fit any boat up to 72"
Wide. These can be Ganged together to form multiple
racks with the SUT-4BRE Extension Rack. Shown is an 8 Bay Rack - 4
High by 2 Wide. |
|
SUT-4BR DIMENSIONS |
Vertical Spacing is 22"
(adjustable) |
| Height = 84" ,
92" with Casters |
Width = 74.5"
Inside = 72" |
Depth = 75.5" |
|
Capacity is 200 lbs per bay 600
lbs Total |
|
CLICK
HERE to view dimensional drawings |
 |
|

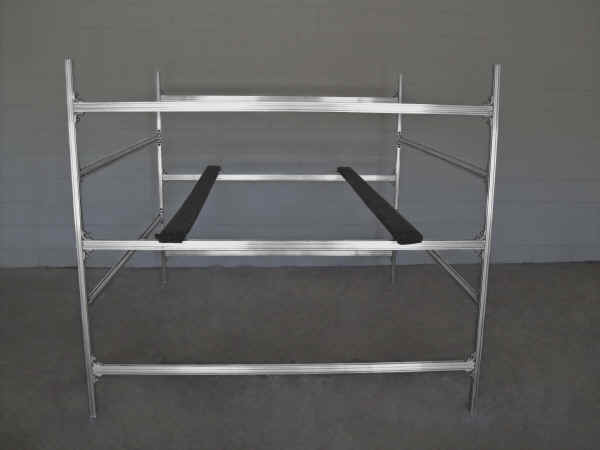

Trailex SUT-3BR Box Style Rack Shown with Optional Slide Bunks in the Center
Bay. Options can be Mixed and Matched for Different Boat Styles
- Sailboats, Rowboats, Pedal Boats, Canoes and Kayaks can all be accommodated
with one storage rack style |
 |
|
Most Users store their Boats Upside Down on the Racks. Boats
can be stored Right Side up if desired. Crossbars
are supplied unpadded. If you wish, Vinyl Padded Inserts are
available. Optional Slide Bunks are also available. If you plan to Install
your own Slide Boards, then it is best to
cover them with outdoor carpet. |
| Optional Vinyl Padded Inserts are available for Box Style Boat
storage Rack
Cross Bars. Standard Boat Racks are supplied without
Padding. |
|
 |
 |
|
Racks can be "Daisy Chained Together" to Form Larger Rack
Systems. Optional Extension Modules are Available at Cost
Effective Pricing.
|

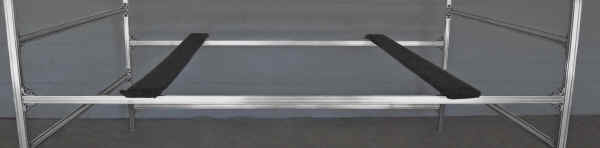

Use Slide Bunks for:
A. Heavier Boats or Paddle Boats for Easier Loading
B. For Assisting Youths to self store their Own Boats
Sailboat Storage Racks are best equipped with slide bunks for
Optimist (Opti), Sabot, El Toro and other small sailboats.
To Save on cost, you can purchase wood locally and cover with
outdoor carpet yourself.
|
 |

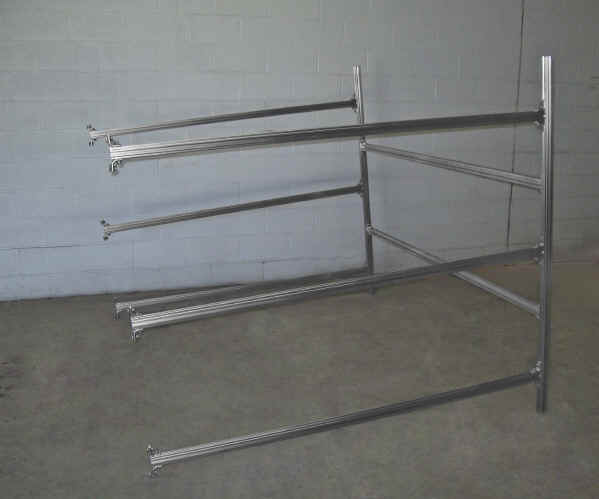

| Trailex SUT-3BRE Extension Module. This Option allows you to
"Daisy Chain" Multiple Rack sections together to form Larger
Rack Systems. Also Available in a Four (4) Boat Model. |
 |

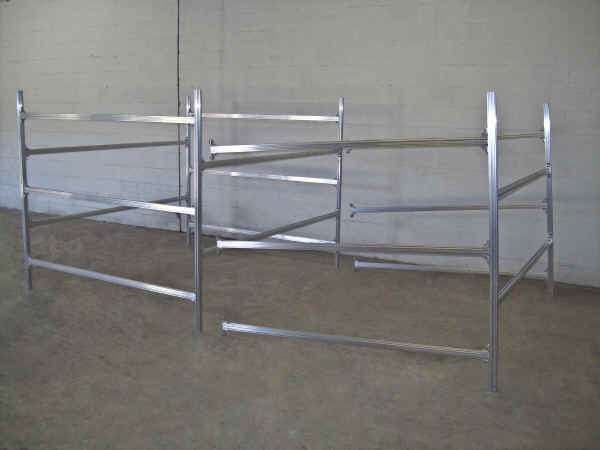

| Trailex Box Style Boat Storage Rack with Extension Module - Ready to Be
Installed |
 |
| Trailex 15 Boat Rack (SUT-3BR with Four SUT-3BRE Extensions)
Customer installed his own Slide Bunks with locally obtained 2 x
4's. Racks are bolted down to customer installed concrete
pads using the AB-4 Anchor Bracket System |
|
FREE SHIPPING
ON TRAILEX STORAGE RACKS*
*within the 48 USA |
PRICES
|
Box
Style Boat
Storage Racks
|
Price
|
Shipping
48 USA |
|
|
|
|
|
|
SUT-3BR
|
Box Rack for 3 Boats up to 72" Wide |
1559.00 |
+ FREE S&H |
|
SUT-3BR-OPTI
|
Box Rack for 3 Optimist Sailboats |
1559.00 |
+ FREE S&H |
| SUT-4BR |
Box Rack for 4 Boats up to 72" Wide |
1820.00 |
+ FREE
S&H |
|
SUT-4BR-OPTI
|
Box Rack for 4 Optimist Sailboats |
1820.00 |
+ FREE S&H |
|
CAST-BR
|
Caster Kit for Box Style Racks |
427.00 |
+ FREE S&H |
| VPI-3BR |
Vinyl Padded Insert Sets For SUT-3BR Rack (pads all
crossbars on this rack) # |
16600 set |
+ S&H* |
| VPI-4BR |
Vinyl Padded Insert Sets For SUT-4BR Rack (pads all
crossbars on this rack) # |
21900 set |
+ S&H* |
| SB-2 |
Set of Two (2) each Carpet Covered Wooden
Slide Bunks With Hardware.
( Order 1 each SB-2 for each Boat Bay)## |
279.00 set |
+ S&H* |
| SB-KIT |
Set of Hardware Only -
for Two (2) Customer
Supplied Wooden 2" x 4" x 8' Bunks
Order One SB-KIT
for each Bay Level |
29.00 set |
+ S&H* |
| SUT-3BRE |
Extension Module for SUT-3BR note
1 |
1237.00 |
+ FREE S&H |
| SUT-3BRE-OPTI |
Extension Module for SUT-3BR -OPTI note
1 |
1237.00 |
+ FREE S&H |
| SUT-4BRE |
Extension Module for SUT-4BR note
1 |
1475.00 |
+ FREE S&H |
| SUT4BRE-OPTI |
Extension Module for SUT-4BR -OPTI note
1 |
1475.00- |
+ FREE S&H |
| AB-4 |
Anchor Brackets (Set of 4) note 2 |
29.00 |
+ S&H* |
| FWSC |
Set of Four Sliding Eyebolts |
29.00 |
+ S&H* |
*Accessories Qualify for Free Shipping with Purchase of
Storage Rack
| # VPI Inserts are Approximately 72" wide, giving a full width
Vinyl Padding across the Crossbars. They Slide into the Top
Groove of the Crossbar.
VPI-3BR includes 6 each Vinyl Padded Inserts for Crossbars
VPI-4BR includes 8 each Vinyl Padded Inserts for Crossbars
## SB-2 consists of 2 each approximately 84" Long Carpet
Covered 2" x 4" Slide Bunks with Hardware to attach to
crossbars. This is enough for One Boat Bay Only. These
install without any drilling and can easily slide to any point on the
Crossbar to adjust for Boat Width.
To completely equip a Box Style Rack with Slide Bunks - Order as
Follows:
For the SUT-3BR - Order 3 each SB-2 sets
For the SUT-4BR - Order 4 each SB-2 sets
You can save on cost and do it yourself by purchasing treated
2" x 4" Boards at your local lumber yard. Ordering an
SB-KI set gives you the hardware to bolt down two slide bunks (
use locally obtained lag screw or bolt for the wood attachment to the
RB-KIT.)
Note: Installing Slide Bunks Reduces Vertical Spacing Height by
2"
NOTE 1 - Extension Modules require at least one complete rack such
as the SUT-3BR or the SUT-4BR. Modules can then be "Daisy
Chained" to form horizontal rack systems to any length.
For example to configure an 18 boat rack that is 3 boats high: Order 1
each SUT-3BR Rack and 5 each SUT-3BRE Extension Modules - this will give
you a complete rack that is 3 Boats High and 6 Boats Wide.
NOTE 2 - Anchor Bracket Set provides 4 L-Brackets that attach to
rack legs. Allows installer to bolt down the rack to floors,
docks, or concrete pads. |
|
USE
FOR SAILBOAT STORAGE
The SUT-3BR Three (3) Boat Rack will
typically adjust to fit boats up to 72" wide and 24" Hull
Depth
The SUT-4BR Four (4) Boat Rack will
typically adjust to fit boats up to 72" wide and 22" Hull
Depth
If your Boat's Hull Depth is greater than the Standard dimensions,
You Could order the Larger Rack and leave out one set of crossbars
If You are Mixing Different Boats, You can adjust the Crossbars to
different Heights for each Boat.
Smaller Boats, such as Sunfish, Laser, Force 5, Snark, Optimist,
Sabot, El Toro and others will fit the Standard Adjustments.
Larger Boats Such as the Laser 2, Vanguard 15 or 420 Should
use the Next Larger Size Rack. i.e. For 3 each
Vanguard 15 - order the SUT-4BR and leave out one of the Crossbar Sets |
|
Optimist
Sailboat Racks |
 |
| Trailex Boat Rack with Opti Sailboats. This is part of a 30
Boat Rack System. Since the Racks were installed under a roof,
they chose to store the Optimist Sailboats Right Side up, instead of
upside down ( which is preferable when outdoors) Slide bunks were
used to make loading easy. |
| |
Racks are adjustable. This allows you to
raise the lower Crossbar so an OPTI may be stored under the rack on its
Dolly - as long as the dolly is less than the 58" inside Dimension
.
Measure
your dolly - if it is wider - use the SUT-3BR Standard model (which is
72" inside dimension)
Note this does not add an extra level. For example
the SUT-3BR-OPTI Rack will still store only Three Boats Total |
| |
If the boats are to be loaded by youths, it is usually best to have no more
than Three Levels high. If loaded by adults, levels can be higher. |
| |
Slide Bunk Options are needed for proper Opti support and ease of loading
A. For complete bunks - order 1 set of SB-2 bunks for each Opti Bay
B. For cost effectiveness - most customers order 1 ea SB-KIT (hardware only) for each Opti Bay
-- customer supplies bunks : Usually Wooden 2" x 4" by 8' long, obtained locally |
|
SUT-3BR-OPTI DIMENSIONS |
Vertical Spacing is 24"
(adjustable) |
| Height = 66" ,
74" with Casters |
Width = 60.5"
Inside = 58" |
Depth = 75.5" |
|
Weight Capacity is 200 lbs per bay
600 lbs Total |
|
CLICK
HERE to view dimensional drawings |
|
SUT-4BR-OPTI DIMENSIONS |
Vertical Spacing is 24"
(adjustable) |
| Height = 84" ,
92" with Casters |
Width = 60.5"
Inside = 58" |
Depth = 75.5" |
|
Weight Capacity is 200 lbs per bay 600 lbs Total |
|
CLICK
HERE to view dimensional drawings |
 - |
|

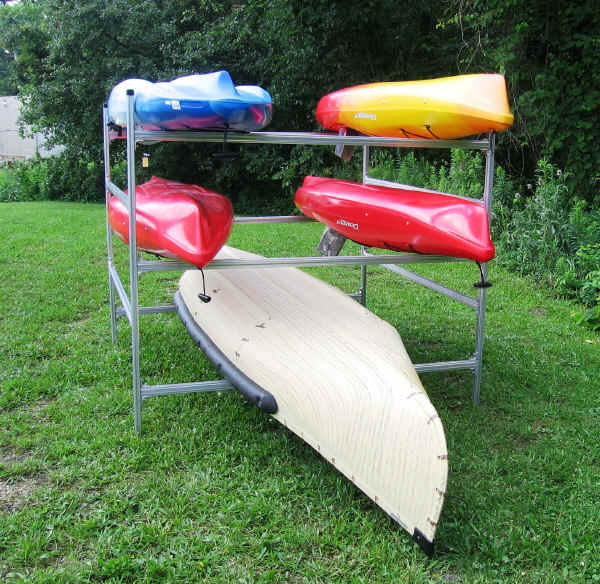

Trailex SUT-3BR Box Style Rack with Kayaks and Canoe |
|
Mix
and Match Different Boats
-
Sailboats
-
Fishing Boats
-
Canoes
-
Kayaks
Racks
Adjust for Each Boat Type |
 |

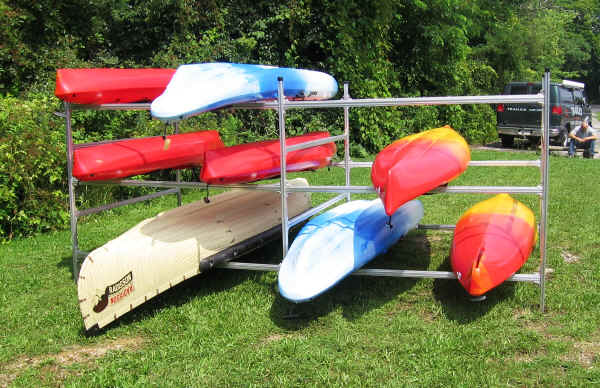

| Trailex SUT-3BR Box Style Rack and SUT-3BRE Extension with Kayaks and
Canoe |
|

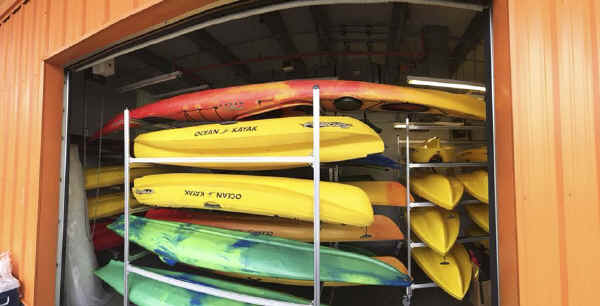

Kayak Rack Storage for
Indoors or Outdoors |
 |
| |
 |
|
 |
|

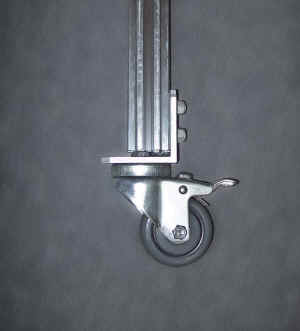

Caster Option is available for
ease of Movement to Storage areas |
Locking Swivel Casters Have 5" Poly
Wheels
Casters install easily without any drilling- |
 |
| AB-4 is a Set of Four Anchor Brackets that are Aluminum and
come with T Bolts and Nuts for easy installation without drilling.
This allows you to bolt the Rack Down to any surface - Such as a Dock,
Floor or Concrete Pad with your choice of locally obtained anchor
bolts for your particular surface.
See the Storage Rack Anchor Page |
AB-4 Anchor Set of Four L
Brackets and Bolts are Aluminum
FWSC Option |
|
Set of Four Clips
|
|
Optional Tie Down points for Web Straps or Bungee Cords - Use
to add extra tie down points to secure boat.
Easily adjusts to any position by sliding.
|
|
FWSC Option includes Four Sliding Square Eyebolts. These can
be installed on any side of a member on the unit that has a
slot and then locked in place by tightening the nuts. |
Assembly Instructions
| Loading Notes: Adults can easily leverage boats onto
racks. For younger users, wooden slide bunks can be installed to allow
boats to slide full length onto racks. Optional carpeted wooden slide bunks are available, or customer may
find it more economical to obtain them from a local lumber
yard. Bunks can be covered with outdoor carpet. Secure bunks by
drilling holes to allow screw down points. |
|
-
Patented T-Bolt Construction
-
Fully Adjustable
-
Heads of bolts slide to any position.
-
Requires only one wrench to tighten
-
Lock nuts on all bolts
-
Strong & lightweight
|
 |
|
