Canoes
Seitech Storage Racks
Outline Dimensions
Stationary, Wall and Roll a Round Storage
Racks
Seitech Storage Racks are made of aluminum, engineered
composite joints and stainless
steel fasteners. They are available in fixed, wall mount, and with
rolling casters. Ideal for storage or display units. Racks ship UPS.
Arms on all Canoe Racks are 36" deep with 31" of
vinyl padding on top of arms
Canoe Rack Longitudinal dimensions (length between
support bars)
are 66" for Wall and Single Tree
84" for Double Tree Models
disregard other dimension on drawings below

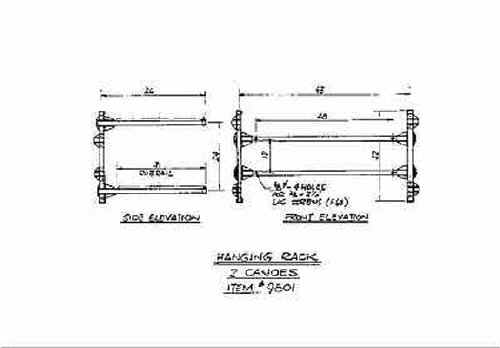

Current Model Number 72508
Seitech Rack for 2 Canoes or Kayaks Wall Mount
Rack mounts with lag screws thru predrilled holes

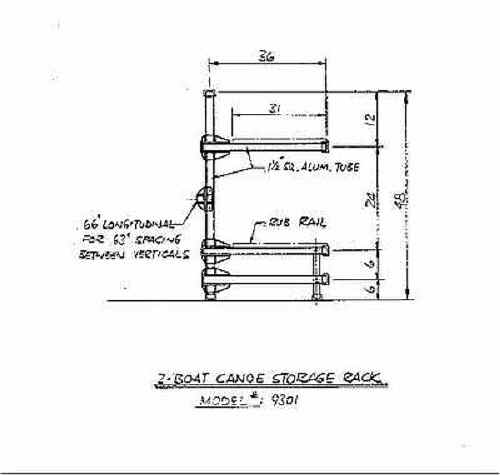

Current Model Number 72503
Seitech Canoe Rack for 2 Canoes Stationary

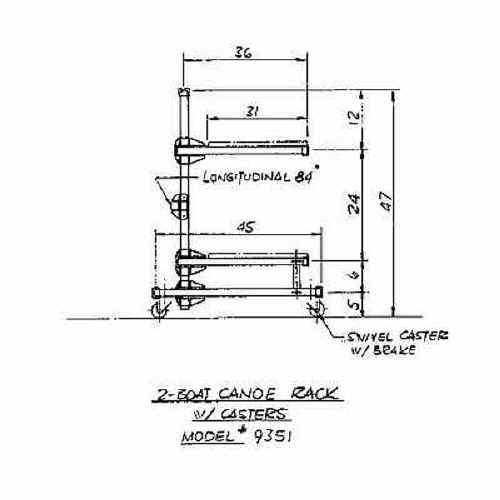

Current Model Number 72503 with Optional Caster Kit
Seitech Canoe Rack for 2 Canoes on Rolling Casters
Full Wheel Casters are lockable

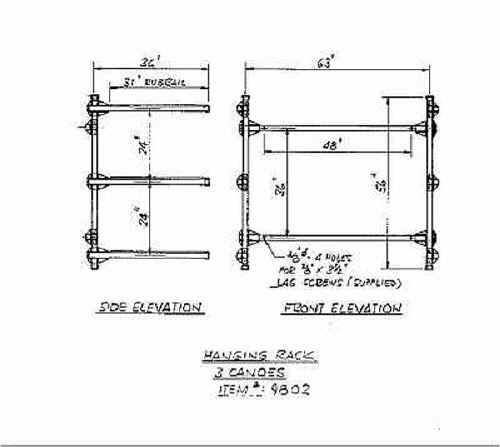

Current Model Number 72509
Seitech Rack for 3 Canoes or Kayaks Wall Mount
Rack mounts with lag screws thru predrilled holes

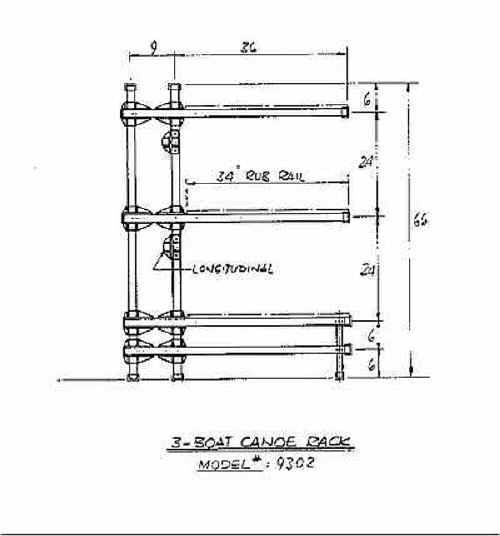

Current Model Number 72504
Seitech Canoe Rack for 3 Canoes Stationary

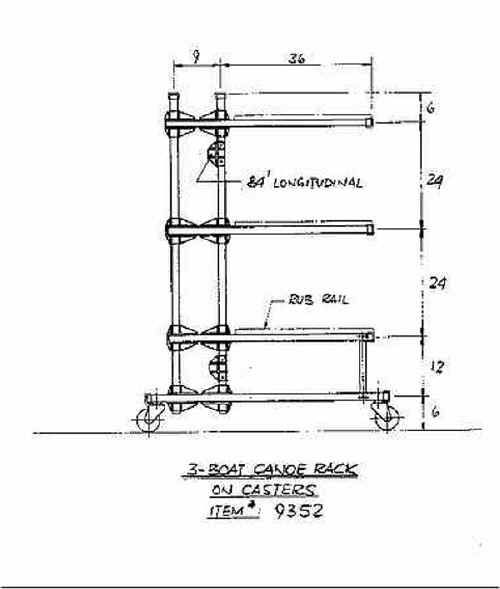

Current Model Number 72504 with Optional Caster Kit
Seitech Canoe Rack for 3 Canoes with Rolling Casters
Full Wheel Casters are lockable
Current Model Number 72510

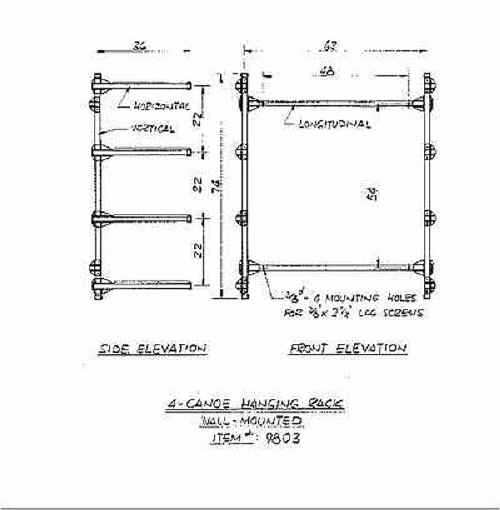

Seitech Rack for 4 Canoes or Kayaks Wall Mount
Rack mounts with lag screws thru predrilled holes
Current Model Number 72505
Seitech Canoe Rack for 4 Canoes Stationary

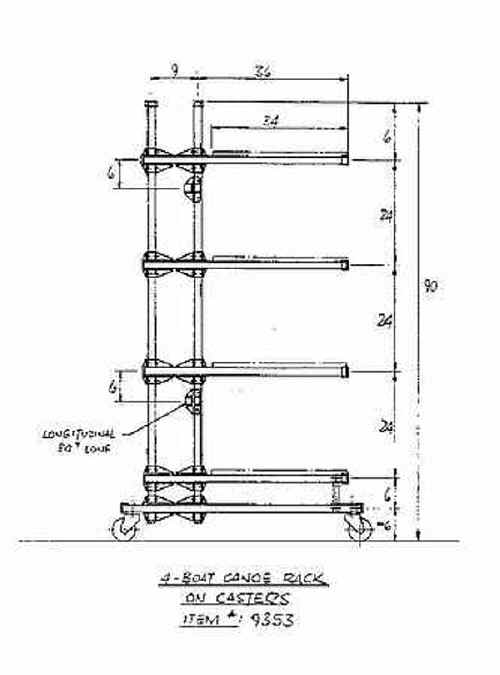

Current Model Number 72505 with Optional Caster Kit
Seitech Canoe Rack for 4 Canoes with Rolling Casters
Full Wheel Casters are lockable

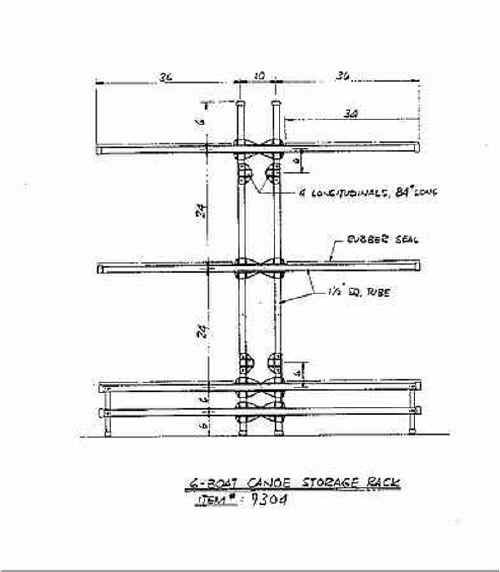

Current Model Number 72506
Seitech Rack for 6 Canoes or Kayaks Stationary

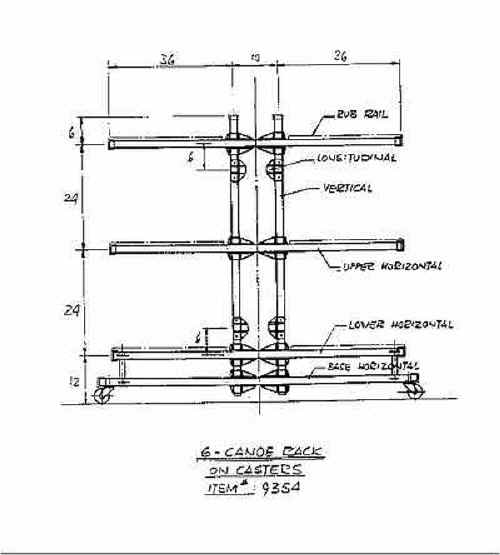

Current Model Number 72506 with Optional Caster Kit
Seitech Rack for 6 Canoes or Kayaks on Rolling Casters
Full Wheel Casters are lockable

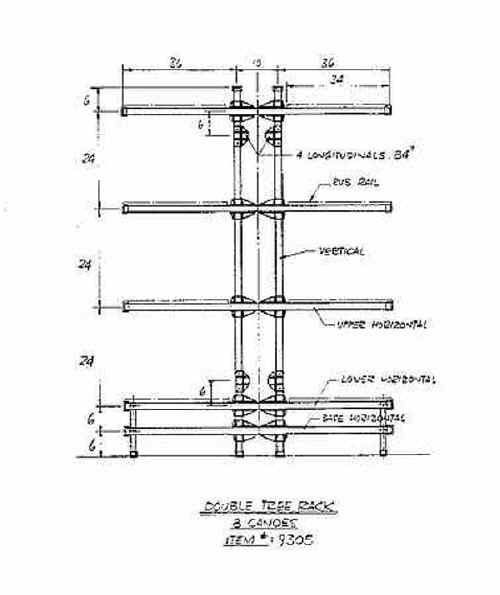

Current Model Number 72507
Seitech Rack for 8 Canoes or Kayaks Stationary

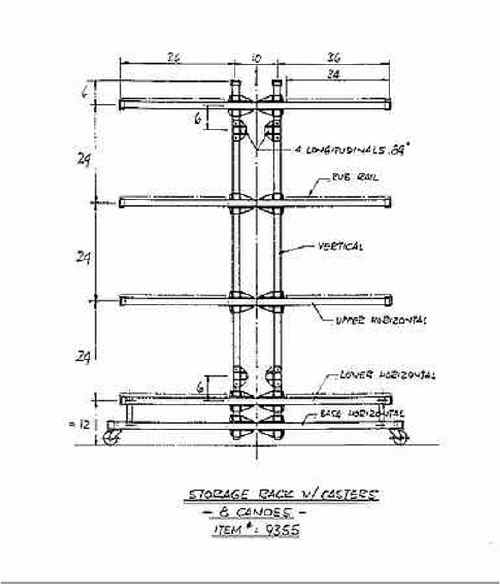

Current Model Number 72507 with Optional Caster Kit
Seitech Rack for 8 Canoes or Kayaks on Rolling Casters
Full Wheel Casters are lockable
How To Anchor and Bolt
Down Storage Racks
|
