Small Sailboat Trailer for
Zuma ,Force 5, Sailing Dinghies
&
Similar Sailboats to 250 lbs


Trailex Ultra-Light Aluminum Trailers come with  a One Year Limited Warranty.  Almost 50% lighter than steel trailers and they Never Rust

Trailex Model SUT-250-S Series Trailers

FREE SHIPPING ON TRAILEX SUT SERIES TRAILERS*
*within the 48 USA





Trailex SUT-250-S Trailer with Zuma Sailboat
Zuma Sailboat on Trailex Model SUT-250-S Trailer





SUT-250-S Trailer  is 1,999.00 + FREE Shipping (48 USA)

Scroll Down the Page  for Details , Available Options Pricing  and Action Videos









SPECIAL OFFER
(offer only valid when ordered with trailer)
Sorry, Offer Does Not Apply to Prior Sales + Limited Time Offer

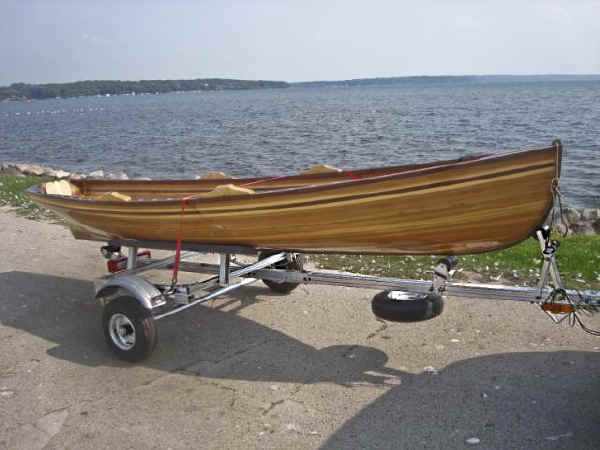

Trailex SUT-500-S trailer shown with Wooden Boat
Trailex SUT-250-S Is Capable Of Carrying Many Small Sailboats, Including Sailing



Bunks are Fully Adjustable
Bunks can be Adjusted in Height and Angle, or Spaced Close or Wide



Support Bunks can be Flat

  Angle Bunks to fit Hull Contour








Optional FCA-1 Custom Front Cradle Assembly Provides  Additional Bow Support Adjustment
NOTE: Special Use Only-Not Required for Most Boats



Cradles Adjust To Fit  Many Special Boats Such As the
Force 5, MXRay and Others





CLC  Passagemaker Dinghy on Trailex SUT-250-S Trailer
Chesapeake Light Craft Passagemaker Dinghy on SUT-250-S Trailer





Trailex SUT-250-S Trailer withHobie Holder sailboat
Hobie Holder One Sailboat on the Trailex SUT-250-S Trailer

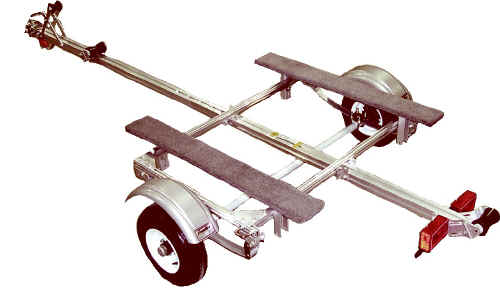

Trailex model SUT-250S Trailer
SUT-250-S has 6" wide  bunks for maximum hull support

All Aluminum, All Bolted Construction, All Adjustable







View All Trailer Prices
  <CLICK HERE>













Trailer weight only 120 lbs Ships UPS, Capacity of 250 lbs, All aluminum, and requires only simple tools for assembly, comes complete with High Speed Wheels, Submersible taillights, locking web strap, safety chains & padded bunks. Never rusts, lightweight and maintenance-free

Specifications

     Standard Equipment

Capacity:
Weight:
Length:
Width:
Tires:
Coupler:
Electrical:

250 lbs
120 lbs
12'-7"
72"
16" High
1-7/8"
Flat 4 prong

  • Submersible Taillights

  • Safety Chain

  • Padded Bunks 48' long

  • Adjustable Bow Stop

  • Lift Handle with Vinyl Caps

  • High Impact Plastic Fenders

  • High Speed Demountable Galvanized Wheels & Tires

  • Adjustable Undercarriage

  • Two  6" Rollers





Wheel Size Options
Two wheel and Tire Sizes are available





Standard  is 8.00 X 4.80
  Actual Height is 16"

Large   is 12.00 X 4.80
 Actual Height is 20"



View All Trailer Prices
  <CLICK HERE>









Optional Extra Equipment


SUT-12 12"  Wheel Upgrade (Large 12.00 X 4.80)

198.00

SPGAL Spare Tire  (Standard 8.00 X 4.80)   69.00
SPGAL-12 Spare Tire  (Large 12.00 X 4.80)

  99.00

STC Spare Tire Carrier   59.00
WNC Winch with Strap & Hook 159.00







Additional Options


DMMC4 Deck Mount Mast Carrier (ea)     59.00
AM-10 Aft Mast 10" Carrier-Gudgeon Mount     59.00
AM-16 Aft Mast 16" Carrier-Gudgeon Mount     89.00
SMSK Mast Carrier Set  AM-10+DMMC4   119.00
FMS-48 Front Mast Stand on Trailer - 48" High   call
FMS-60 Front Mast Stand on Trailer - 60" High  call
FCA-1 Custom Front Cradle Assembly   149.00











  Bearing Protection System
  Included on Every Trailer

Sure Lube low pressure bearing lubrication system.  Protects bearings and prevents any seal damage.
Easy to use. A Zerk Fitting is located under the axle's end cap. Removing the end cap allows you to use a
small grease gun to lubricate the bearings.
The new grease pushes the old grease out.







SMSK  Mast Carrier Set includes Front Deck Mount Yoke with non-marring feet and a Rear Mast  Carrier Yoke with 3/8" pintles to fit into the Rudder mounting holes





 Applications

Model SUT-250-S will carry a single Sailboat up to 14'-6" long and 250 lbs

Will adapt to most small sailboats, including, but not limited to:

Escape Sailboat

Force 5 Sailboat

MXRay Sailboat

Megabyte Sailboat

Sunchaser I & II Sailboat

Zuma Sailboat

For longer boats, such as Vanguard 15, see Model SUT-500-S





Click Here for Frequently Asked Questions

Trailex Trailer Packaged for UPS Shipment

Typical Trailex Trailer Packaged for FedEx Shipment



Trailex T-bolt

Trailex T-Bolt with nut

  • Patented T-Bolt Construction

  • Fully Adjustable

  • Heads of bolts slide to any position.

  • Requires only one wrench to tighten

  • Lock nuts on all bolts

  • Strong & lightweight

Trailex Extrusion & T-Bolt





See Action Videos
Trailex  Trailer Owners  love to post Videos.  See the Latest Action Videos

CLICK BELOW





Trailex SUT-250M-2 Trailer Video







Trailex SUT-250M-2 Trailer at Paddle Sports Show
















SUT-250-S
Assembly Instructions
Escape Sailboat Trailer Zuma Sailboat Trailer
More
Trailers

Trailex Trailer Brochure
Trailex Trailers
Brochure
