Dual Canoe Trailer
Trailer for transporting two canoes
SUP Paddleboard Trailer for two to four Paddleboards


Trailex Logo

Trailex Ultra-Light Aluminum Trailers come with  a One Year Limited Warranty.  Almost 50% lighter than steel trailers and they Never Rust


*within the 48 USA


Trailex Model SUT-250-M-2T Trailer

Trailex Model SUT-350-M-2 Trailer

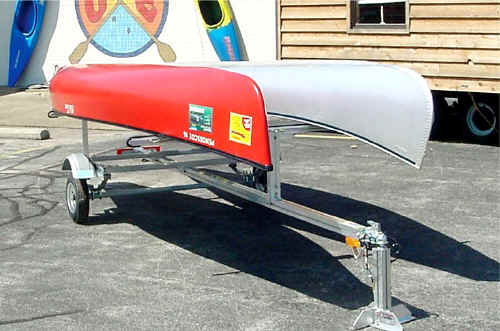

SUT-250M-2 with Two Canoes
SUT-250M-2 Trailer with Two Canoes
(canoes not included)


SUT-250-M2 T Trailer  is 2449.00 + FREE Shipping (48 USA)

SUT-250-M2T - LATEST Generation includes:
Torsion Axle Model (No leaf springs) Light Smooth Ride
12" Wheels Standard equipment , Aluminum Fenders

SUT-350M-2 Trailer  is  NA + FREE Shipping (48 USA)

Scroll Down the Page  for Details , Available Options Pricing  and Action Videos


View All Trailer Prices






Mix and Match Kayaks or Canoes

Canoes are carried upside down.  Kayaks are carried upright or strapped together side by side on the SUT-250-M-2  dual canoe and  kayak carrier.  This model can carry two canoes or  up  to four kayaks, or you can mix canoes and kayaks.  See our Model SUT-220-S  for carrying a single kayak upright.



SUT-250-M-2 has a "soft" suspension for light boats

SUT-350-M-2 for longer boats and higher capacity

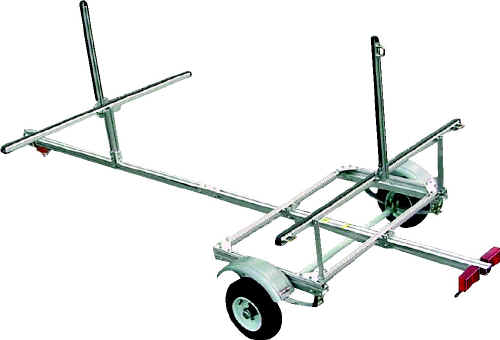

Trailex SUT-250-M-2 Trailer
SUT-250-M-2 and SUT-350-M-2 Trailers come standard with two 33"vertical risers
Risers are easily removed

All Aluminum, All Bolted Construction, All Adjustable

Model SUT-250-M-2   Multiple Canoe Trailers has epoxy coated leaf springs, giving it a carrying capacity of up to 250 lbs.  SUT-350-M-2 has a 350 lb capacity and a longer tongue. This trailer  is packaged for UPS shipment, and is easily assembled using only simple tools.  Since the Dual Canoe Trailer is made of aluminum, it is maintenance-free in addition to being strong and lightweight.  It's light weight allows towing with today's smaller vehicles.  Trailer also has two center Vertical Supports for tie down support .  The two vertical risers can be positioned at any point along the T bars.  You could add an additional set of MKP vertical risers to the Trailer to provide vertical support on both outer ends of the T-Bars.

View All Trailer Prices








Standard Equipment

MODEL SUT-250-M-2T SUT-350-M-2   Submersible Taillights
Capacity: 250 lbs 350 lbs   Safety Cables
Weight: 115 lbs 125 lbs   Tongue Skid
Length: 14'-11" 18'3"   Crossbar and End Vinyl Extrusions
Width: 72"  72"    High Speed Galvanized  Wheels & Tires
Crossbars: 72" Width
31" Height
72" Width
31" Height
  Adjustable Crossbar Spacing
Tires: 16" High 16" High   High Impact Plastic Fenders
Coupler: 1-7/8" 1-7/8"   Adjustable Undercarriage
Electrical: Flat 4 prong Flat 4 prong   Epoxy Coated Springs
        Web Strap Clips (6)
        Two 33" Vertical Risers




Wheel Size Options
Two wheel and Tire Sizes are available



Standard  is 8.00 X 4.80
  Actual Height is 16"

Large   is 12.00 X 4.80
 Actual Height is 20"




Optional Extra Equipment

SPGAL-12 Spare Tire  (Large 12.00 X 4.80)


STC Spare Tire Carrier   59.00





  Bearing Protection System
  Included on Every Trailer

Sure Lube low pressure bearing lubrication system.  Protects bearings and prevents any seal damage.
Easy to use. A Zerk Fitting is located under the axle's end cap. Removing the end cap allows you to use a
small grease gun to lubricate the bearings.
The new grease pushes the old grease out.




Box Kit for Trailex SUT Series Trailers     *  BMK is a kit that allows you to mount your own box to the Model SUT-250-M-2 or SUT-350-M-2 Trailer.  You can mount low cost metal or plastic truck storage boxes available from most large stores or automotive stores.  These boxes are typically 72" long, so although they would fit canoe paddles, kayak paddles would have to be of the take-apart type.  Alternatively, you could build your own box and mount it to the trailer with this kit.   NOTE: Box weight plus boats cannot exceed 250 lbs on SUT-250-M-2 and 350 Lbs on SUT-350-M-2.  Box can be mounted anywhere along the tongue - even under the boats - check dimensions before obtaining a box.

Kit consists of a front crossbar and 4 brackets..  The box mounts atop the tongue in the same direction as your boats.


Typical Storage Box mounted on the Trailex SUT-250-M-2 Trailer


** 30TPAK  contains 30 each T-Bolts & Locknuts for attaching your options on the trailer.  We do not recommend drilling holes in the aluminum extrusions.  The T-Bolts will slide to any position on any of the extruded parts to allow you to fasten your own options such as  kayak cradles or other items.



Trailew Web strap Clip Option
FWSC Option

Trailew Web strap Clip Option Set of Four Clips

Optional Tie Down points for Web Straps or Bungee Cords - Use to  add extra tie down points  to secure boat. Easily adjusts to any position by sliding.


FWSC Option includes Four Sliding Square Eyebolts.  These can be installed on any side of a  member on the unit  that has a slot and then locked in place by tightening the nuts.

NOTE  This Trailer comes with  Six Web Strap Clips (6) already included

Application Information

Select  Model SUT-250-M-2 for combined weight of up to 250 lbs
Will carry two Canoes up to 17' in length
Longer Canoes - use safety flags

Select  Model SUT-350-M-2 for combined weight of up to 350 lbs
Will carry two Canoes up to 20" in length
Longer Canoes - use safety flags

Two Canoes are carried upside down, side by side.

Canoes & Kayaks can be mixed or matched.




See Action Videos
Trailex Trailer  Owners  love to post Videos.  See the Latest Action Videos




Trailex SUT-250M-2 Trailer Video




Trailex SUT-250M-2 Trailer at Paddle Sports Show



Click Here for Frequently Asked Questions

Trailex Trailer Packaged for UPS Shipment

Typical Trailex Trailer Packaged for FedEx Shipment


Trailex T-bolt

Trailex T-Bolt with nut

  • Patented T-Bolt Construction

  • Fully Adjustable

  • Heads of bolts slide to any position.

  • Requires only one wrench to tighten

  • Lock nuts on all bolts

  • Strong & lightweight

Trailex Extrusion & T-Bolt







SUT-250-M / SUT-350-M

Assembly Instructions
Escape Sailboat Trailer Zuma Sailboat Trailer

Trailex Trailer Brochure
